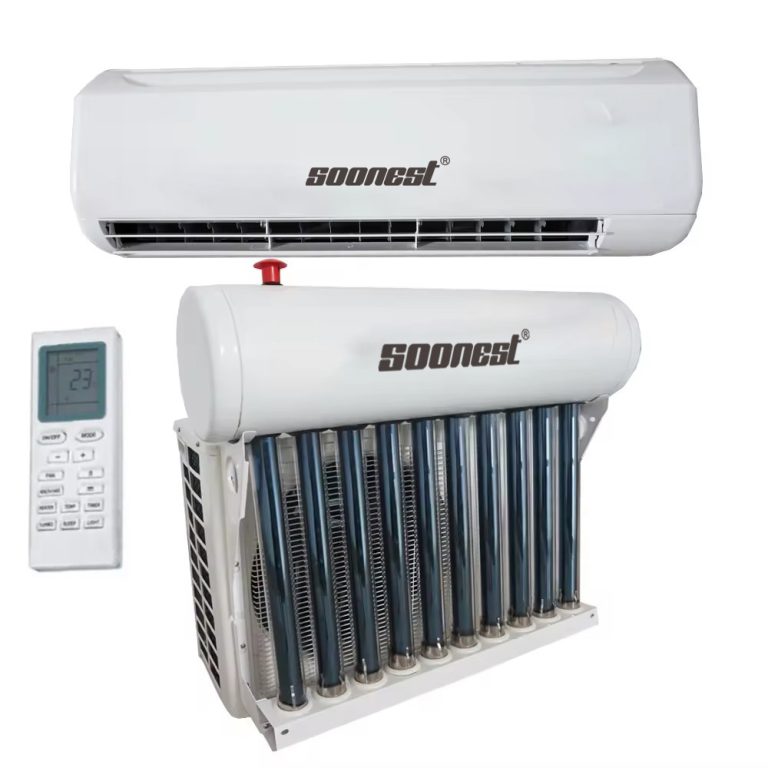

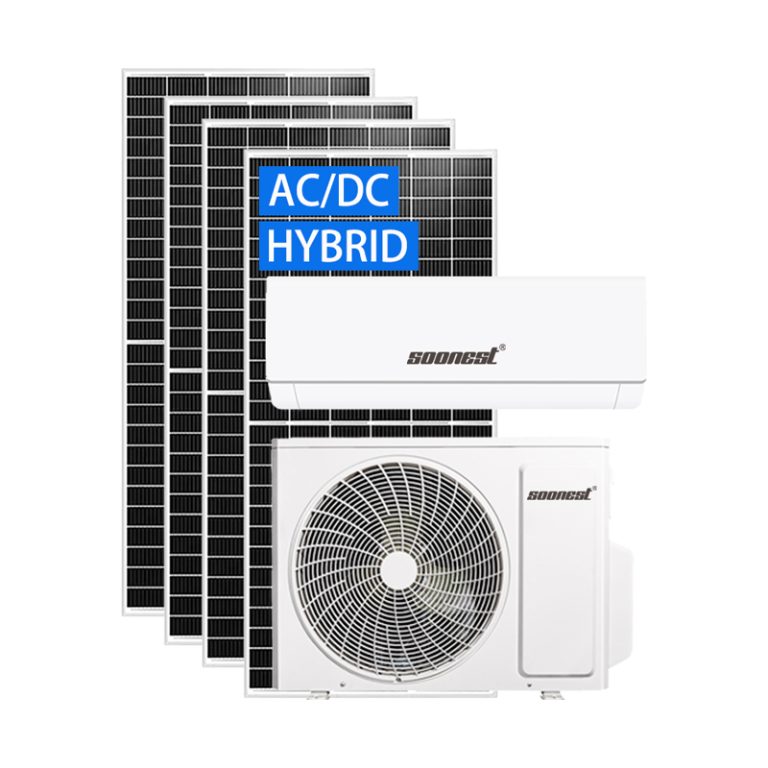

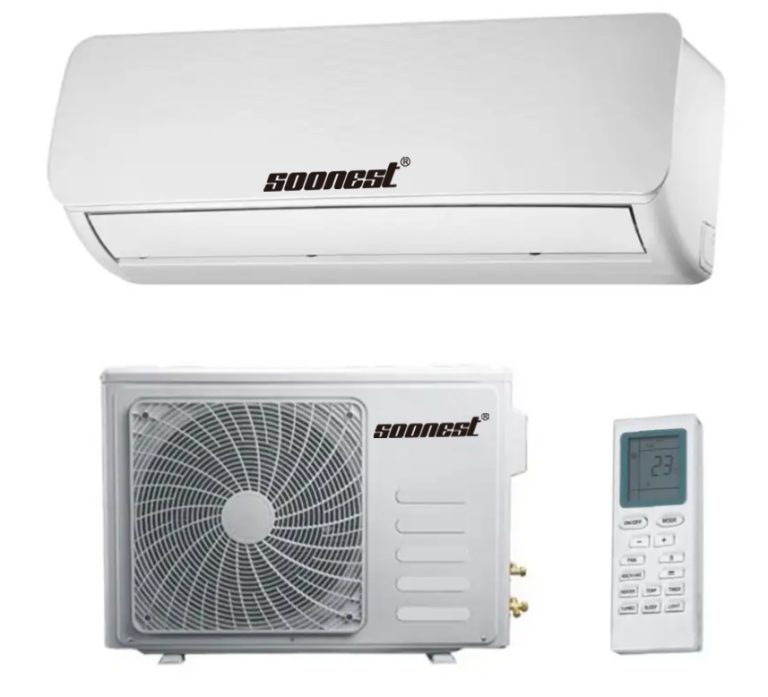

| Vacuum Tube AC DC Hybrid Solar Air Conditioner | ||||||||
| Features | Photos | |||||||
| Model No. | TKF(R)-26GWA | TKF(R)-35GWA | TKF(R)-52GWA | TKF(R)-60GWA | TKF(R)-72GWA | |||
| 1HP | 1.5HP | 2HP | 2.5HP | 3HP | ||||
| 0.75TON | 1TON | 1.5TON | 1.8TON | 2TON | ||||
| Power Supply：220-240VAC, 1PH, 50/60Hz | ||||||||
| Performance | ||||||||
| Capacity | Cooling | Btu/h | 9000 | 12000 | 18000 | 20000 | 24000 | |
| W | 2600 | 3500 | 5200 | 6000 | 7200 | |||
| Heating | Btu/h | 10000 | 13000 | 20000 | 22000 | 27000 | ||
| W | 2900 | 3800 | 6000 | 6600 | 7900 | |||
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤44 | ≤46 | ≤50 | |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤54 | ≤56 | ≤58 | ||
| Air Circulation | m³/h | 500 | 550 | 800 | 850 | 1150 | ||
| Suitable Area | m² | 11~17 | 15~23 | 26~36 | 25~42 | 30~48 | ||
| EER | W/W | 3.84 | 3.89 | 3.83 | 3.88 | 3.82 | ||
| Btu/h/w | 12.42 | 13.27 | 13.07 | 13.24 | 13.03 | |||
| Power Consumption | ||||||||
| Power Input | Cooling | W | 650~770 | 800~1025 | 1100~1300 | 1350~1560 | 1700~1900 | |
| Heating | W | 650~780 | 800~1050 | 1150~1350 | 1350~1590 | 1700~1950 | ||
| Rated Current | Cooling | A | 3.00~3.60 | 3.70~4.80 | 6.30~7.30 | 6.30~7.30 | 8.00~8.90 | |
| Heating | A | 3.00~3.65 | 3.70~4.90 | 6.30~7.50 | 6.30~7.50 | 8.00~8.90 | ||
| Vacuum Tube | Diameter*Length*Pcs | 47mm*520mm*10 | 47mm*520mm*10 | 47mm*620mm*11 | 47mm*620mm*11 | 47mm*620mm*11 | ||
| Flat plate solar collector | WXDXH | 800x500x80mm | 800x500x80mm | 900x500x80mm | 900x500x80mm | 900x500x80mm | ||
| Dimensions | ||||||||
| Indoor Unit | Net | mm | 775*265*210 | 775×265×210 | 985×300×220 | 985×300×220 | 985×300×220 | |
| Shipping | mm | 840*325*265 | 840×325×265 | 1080×380×300 | 1080×380×300 | 1080×380×300 | ||
| Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850* 290* 580 | 850* 290* 580 | 865*310*710 | |
| Shipping | mm | 910*370*610 | 910*370*610 | 995* 390* 680 | 995* 390* 680 | 1025*395*790 | ||
| Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 | 980*400*370 | |
| Vacuum Tube | Shipping | mm | ||||||
| Flat plate solar collector | Shipping | mm | 900x550x90mm | 900x550x90mm | 950x550x90mm | 950x550x90mm | 950x550x90mm | |
| Weight | ||||||||
| Indoor Unit | Net/Gross | kg | 9/10.5 | 10/11.5 | 16/17.5 | 16/17.5 | 20/22 | |
| Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 50/52 | 55/58 | |
| Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 16/17 | 16/17 | 16/17 | |
| Loading Qty | in 20feet | sets | 75 | 75 | 65 | 65 | 55 | |
| 40HQ | sets | 175 | 175 | 135 | 135 | 125 | ||
| Freon: | R410 | |||||||
